Boeing 747 P2F Conversion Tooling

The KiyeMech Boeing 747 P2F Conversion Tooling Suite is a mission-critical set of aviation equipment engineered to facilitate the extreme structural modifications required when converting B747-400 and B747-8 passenger aircraft into freighters. Engineered for heavy maintenance and major airframe conversions, this turnkey suite guarantees that the aircraft remains perfectly stabilized, leveled, and aligned throughout the entire transformation.

Critical Shoring for Main Deck Cargo Door (MDCD) Installation

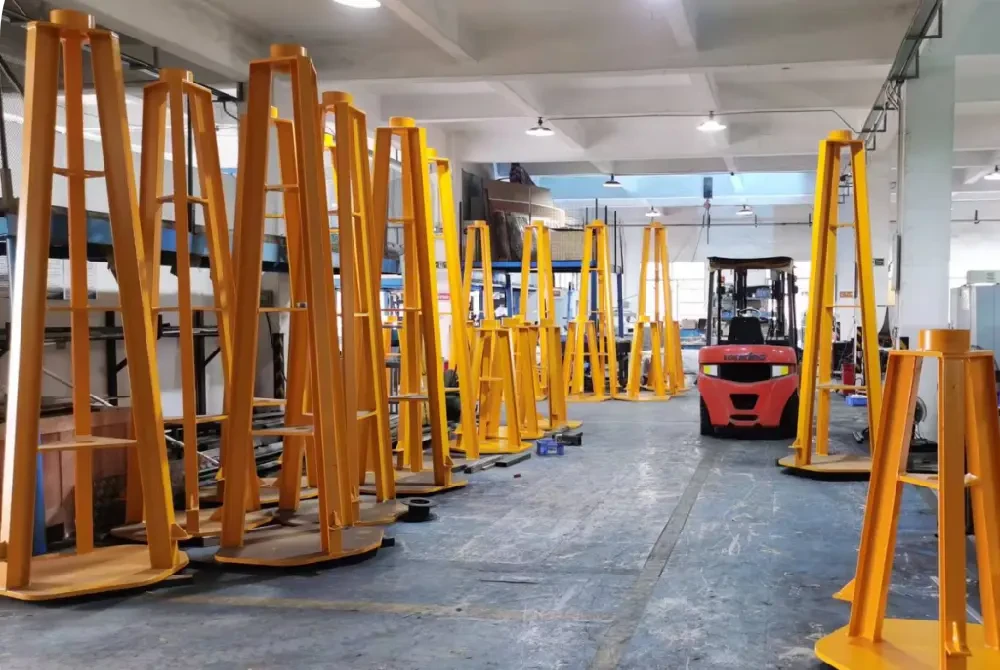

The most high-risk phase of any 747 P2F program is the cutting and removal of the fuselage structure to accommodate the new Main Deck Cargo Door. During this phase, the airframe’s natural load paths are disrupted. Our comprehensive shoring suite provides a rigid, multi-point external skeleton. This effectively assumes the structural load, completely preventing airframe twisting, sagging, or skin buckling while technicians install the new door surrounds and reinforced floor beams.

Proprietary Rotation-Free Airframe Support

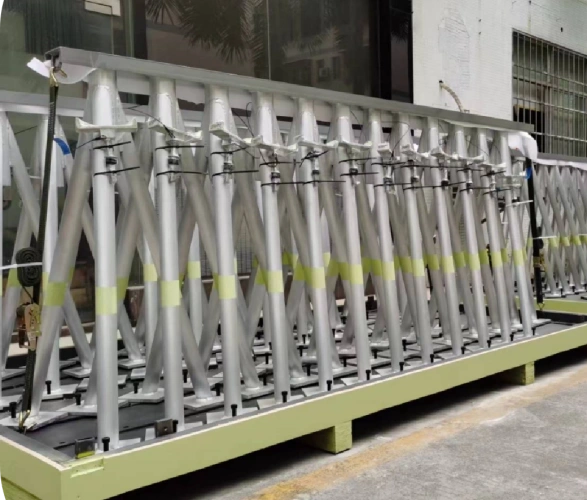

Supporting a wide-body aircraft during structural sectioning requires zero-tolerance precision. The heavy-duty jacks integrated into our fuselage shoring system utilize KiyeMech’s proprietary lifting technologies. Protected by our utility model patent for a Mechanical Screw Jack Mechanism (Patent Number: ZL 2021 2 2443945.9 / CN216471985U), the specialized lifting and rotating assembly ensures that the load-bearing screw rod strictly elevates without rotating. This innovation provides true vertical lift, eliminating any rotational friction or torsional stress against the delicate B747 fuselage interface during critical shoring adjustments.

Heavy-Duty Manufacturing & STC Customization

Every P2F conversion is governed by strict Supplemental Type Certificate (STC) engineering protocols. Operating as a direct manufacturer, Guangzhou Qiye Electromechanical Industry Co., Ltd. controls the entire fabrication process in-house.

Utilizing our 3,700-square-meter facility, our engineering team utilizes high-tensile structural steel, advanced CNC machining, and certified welding procedures to construct these massive alignment jigs. Manufactured under our strict ISO 9001:2015 certified quality management system, every tooling component undergoes dimensional verification and heavy load-capacity testing before global deployment, ensuring total compliance with MRO workplace safety standards.

Frequently Asked Questions (FAQ)

Does this tooling suite cover the entire B747 P2F conversion process?

Yes. The KiyeMech suite provides a comprehensive package, including fuselage shoring, floor beam supports, and precision alignment jigs specifically required for the main structural modification phases, including the MDCD installation.

Can the shoring and jigs be adapted for different B747 variants or specific STCs?

Absolutely. Our in-house engineering team customizes the contact contours, dimensions, and load ratings to align perfectly with the specific B747 variant (e.g., B747-400BCF, B747-400BDSF, or B747-8F) and the technical drawings of your selected STC provider.

Do you offer international shipping for such oversized equipment?

Yes. We have extensive experience utilizing export-grade steel crating and optimized container loading plans to safely deliver oversized P2F tooling directly to maintenance hangars worldwide.
